CLW5041TFZ6ZC Model technical parameters | |||
Name: | CLW5041TFZ6ZC | Exterior size(mm): | 5750×2030×2630 |
Chassis: | BJ3042D8ABA-01 | Container size(mm): | ×× |
Total weight :(kg) | 4495 | Approach angle/ Departure angle(° ) | 22/15 |
Payload:(kg) | Front suspension/rear suspension(mm): | 1075/1725 | |
Kerb Mass:(kg) | 4170(Kg) | Max Speed(km/h): | 88 |
Chassis parameters | |||
Chassis: | BJ3042D8ABA-01 | Axle weight: | 1650/2845 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 2950 | Fronttread(mm): | 1445,1475 |
Max people in cab: | 2+3 | Rear tread(mm): | 1330 |
Number of tires: | 6 | Number of spring axle: | 3/8+5,8/8+5,3/3+2,3/4+3,7/4+3 |
Tire Type: | 185R15LT 8PR,6.00R15LT 10PR | ||

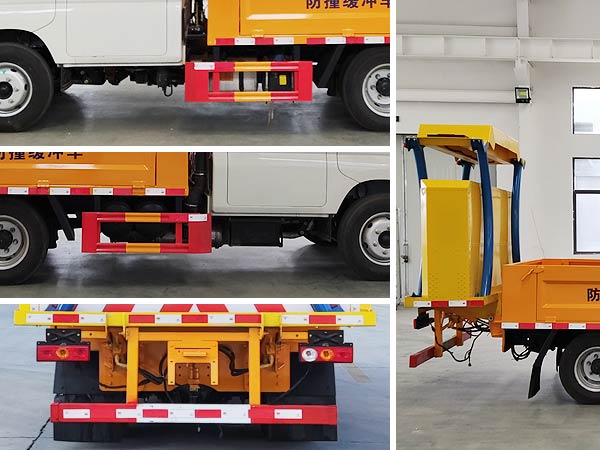

introduction: | 该车为防撞缓冲车辆,专用装置为导向架和防撞缓冲垫等组成;防护材料:Q235B碳钢,连接方式:左右侧面防护及后部防护均采用焊接连接,后部防护断面尺寸(mm):100×50,离地高度390mm;ABS系统控制方式4S/4M,ABS型号为CM4XL-4S/4M,生产厂家为广州瑞立科密汽车电子股份有限公司;选装后部上装样式; |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
Q23-95C60 Q23-95E60 |
安徽全柴动力股份有限公司 安徽全柴动力股份有限公司 |
2300 2300 |
70/95 70/95 |
