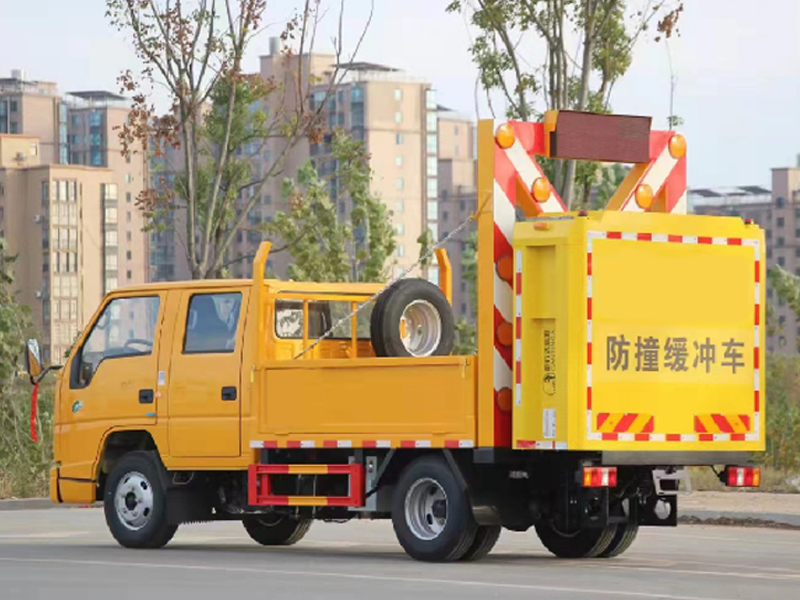

CLW5040TFZJDP - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:52
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
CLW5040TFZJDP Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
CLW5040TFZJDP  Model technical parameters
Name: CLW5040TFZJDP Exterior size(mm): 5995,5970×2200,2000,2020×3200,2080
Chassis: JX1041TSG26 Container size(mm): ××
Total weight :(kg) 4150 Approach angle/ Departure angle(° ) 20/13
Payload:(kg) Front suspension/rear suspension(mm): 1075/1560
Kerb Mass:(kg) 3825(Kg) Max Speed(km/h): 100
Chassis parameters
Chassis: JX1041TSG26 Axle weight: 1600/2550
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3360 Fronttread(mm): 1385,1370
Max people in cab: 2+3 Rear tread(mm): 1425,1440
Number of tires: 6 Number of spring axle: 7/4+6,7/5+6,4/4+6,3/4+6,4/4+4,3/4+4,5/4+6,5/4+4,4/5+6,3/5+6,4/5+4,3/5+4,5/5+6,5/5+4,3/1+3,1/1+1,2/1+2,4/1+3,2/1+1,3/1+2,4/3+2,4/3+3,4/3+4,4/4+2,4/4+3,5/3+2,5/3+3,5/3+4,5/4+2,5/4+3,7/3+2,7/3+3,7/3+4,7/4+2,7/4+3,3/3+2,3/4+2,3/4+3,3/5+2,4/5+2,7/4+4,7/5+4,7/6
Tire Type: 7.00R16LT 10PR
introduction: 该车为防撞缓冲车辆,专用装置为导向架和防撞缓冲垫等组成;防护材料:Q235B碳钢,连接方式:左右侧面防护采用焊接连接,后部防护为专用装置代替,离地高度260mm;ABS系统型号:APG3550500A,ABS系统生产厂家:浙江亚太机电股份有限公司;随底盘选装前脸样式,选装后尾部灯具;选装后部上装样式;
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
JX4D30A6H
JX4D30B6H
JX493ZLQ6A
JX4D25A6H
JX493ZLQ6D
JX495ZLQ6C
江铃汽车股份有限公司
江铃汽车股份有限公司
江铃汽车股份有限公司
江铃汽车股份有限公司
江铃汽车股份有限公司
江铃汽车股份有限公司
2892
2892
2771
2478
2499
2478
95/129
85/115
90/122
105/142
90/122
105/142
other parameters
Introduction:
more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
