CLW5120TFZ6HC Model technical parameters | |||
Name: | CLW5120TFZ6HC | Exterior size(mm): | 7880,8730×2500,2420×4000,3950 |
Chassis: | DFH1160BX1 | Container size(mm): | ×× |
Total weight :(kg) | 12195 | Approach angle/ Departure angle(° ) | 17/13,17/11 |
Payload:(kg) | Front suspension/rear suspension(mm): | 1430/2500,1430/2800,1430/2600 | |
Kerb Mass:(kg) | 12000,12065(Kg) | Max Speed(km/h): | 89 |
Chassis parameters | |||
Chassis: | DFH1160BX1 | Axle weight: | 4500/7695 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 5100,3950,4500,4700 | Fronttread(mm): | 1815,1934,1860,1915 |
Max people in cab: | 2,3 | Rear tread(mm): | 1840,1800,1820 |
Number of tires: | 6 | Number of spring axle: | 11/11+10,11/10+8,8/10+8 |
Tire Type: | 9.00R20 16PR,10.00R20 18PR,275/80R22.5 18PR | ||

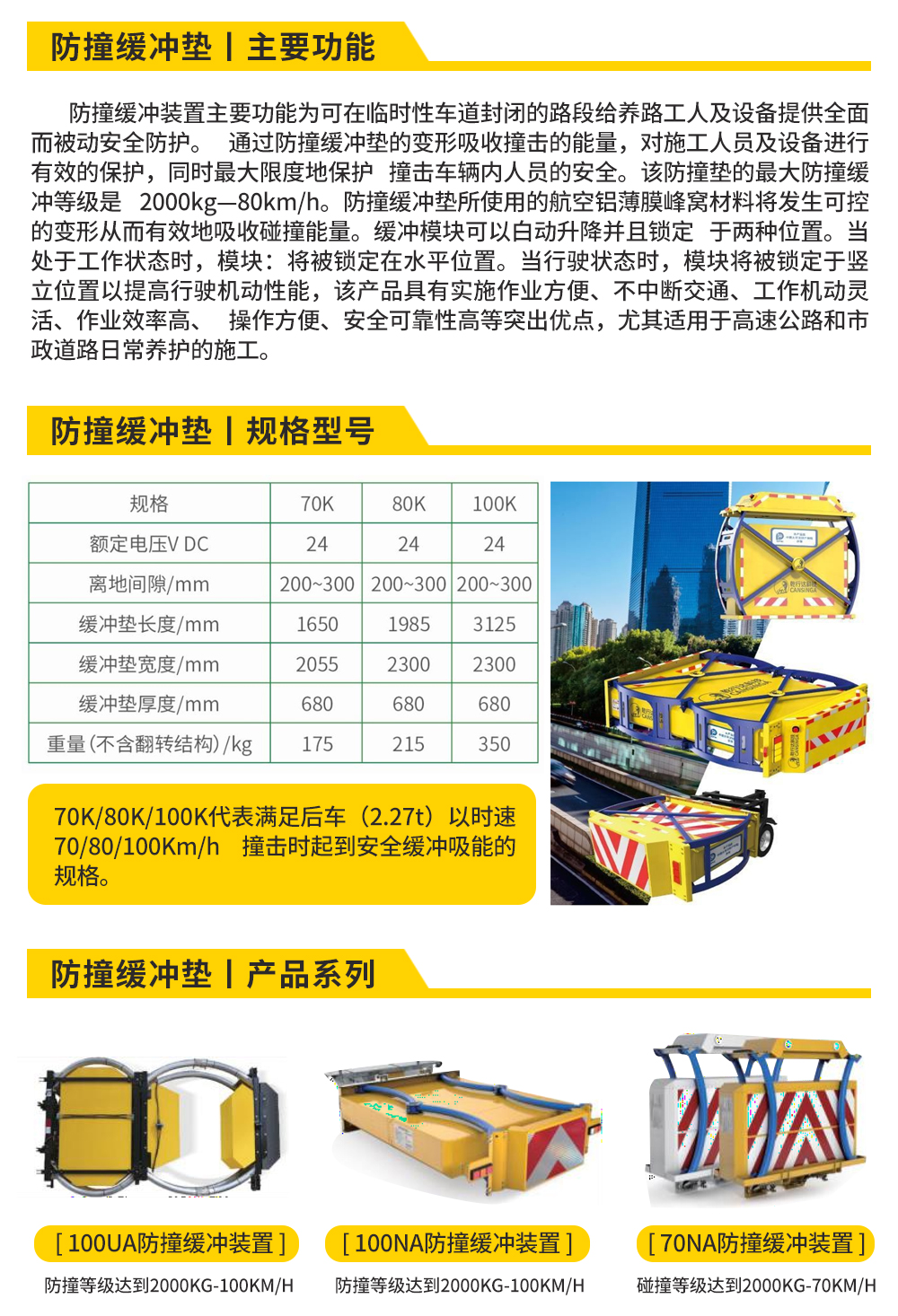

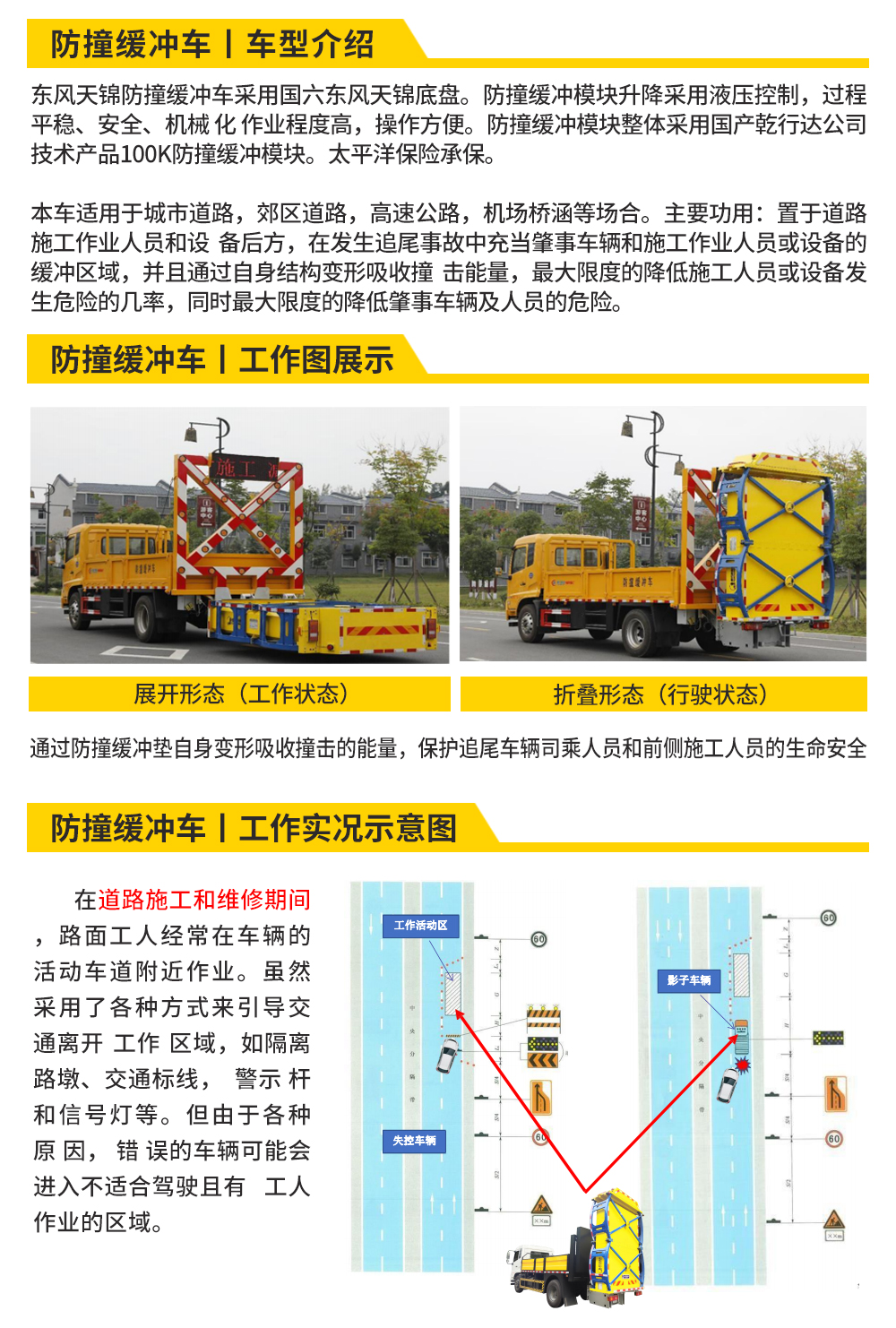

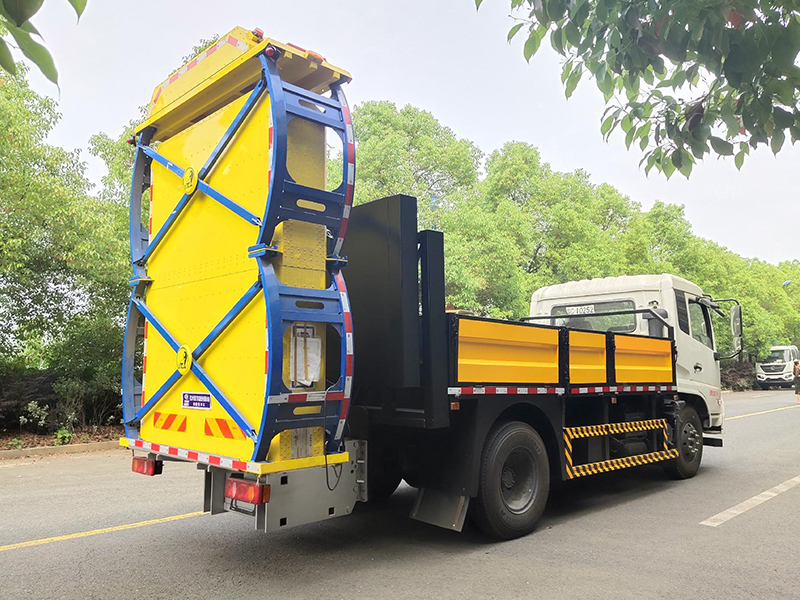

introduction: | 主要专用装置为防撞缓冲装置,用于道路施工过程中的防撞缓冲作业.侧面防护材料:Q235A碳钢.连接方式:左右侧面采用焊接连接.后防护装置由专用装置代替,后部防护离地高度(mm):300.ABS型号/生产厂家:3631010-C2000/东科克诺尔商用车制动系统(十堰)有限公司,ABS 8/东科克诺尔商用车制动系统(十堰)有限公司,4460046450/威伯科汽车控制系统()有限公司,J ABS/焦作博瑞克控制技术有限公司.整车长/轴距/后悬对应关系(mm):7880/3950/2500,8730/4500/2800,8730/4700/2600.随底盘选装驾驶室.选装不同后部防撞缓冲装置样式. |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
DDi50E220-60 D4.0NS6B185 D4.0NS6B195 DDi47E210-60 |
东风商用车有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风商用车有限公司 |
5000 4000 4000 4750 |
162/220 136/184 143/194 154/209 |
other parameters |
Introduction: |
