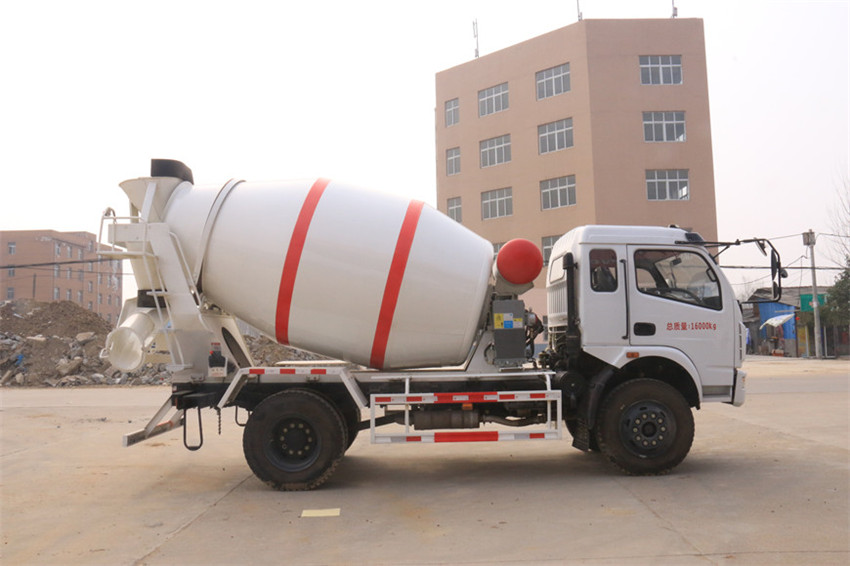

DYQ5161GJBD5AB Model technical parameters | |||
Name: | DYQ5161GJBD5AB | Exterior size(mm): | 7050,7350,7650×2380,2480×3380,3630,3750 |
Chassis: | DYQ1161D5AA | Container size(mm): | ×× |
Total weight :(kg) | 16000 | Approach angle/ Departure angle(° ) | 25/22 |
Payload:(kg) | 7850 | Front suspension/rear suspension(mm): | 1240/2210,1240/2510,1300/2150,1300/2350,1300/2450 |
Kerb Mass:(kg) | 7955(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | DYQ1161D5AA | Axle weight: | 5500/10500 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3600,3700,3900,4200,4500 | Fronttread(mm): | 1940,1810 |
Max people in cab: | 3 | Rear tread(mm): | 1860,1800 |
Number of tires: | 6 | Number of spring axle: | 9/10+8,9/11+9,3/8+6 |
Tire Type: | 10.00-20 18PR,10.00R20 18PR,9.00R20 16PR | ||
introduction: | 运输介质:混凝土;搅动容量3.57立方米。防护装置材料材质:Q235,连接方式:螺栓连接,后下部防护装置断面尺寸为140×40mm,离地高度:540mm。随底盘选装前组合灯、前雾灯、前保险杠、前面板、外侧板、选装遮阳罩,选装后视镜安装位置.ABS型号为ABS-E 4S/4M,厂家为威伯科汽车控制系统()有限公司。该车安装具有卫星定位功能的行驶记录仪。发动机的油耗申报值(L/100km)均为25.7。前悬1240对应整车长/轴距/后悬为:7050/3600/2210,7650/3900/2510;前悬1300对应整车长/轴距/后悬为:7050/3600/2150,7350/3700/2350,7650/3900/2450 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
YC4S140-50 YC4S160-50 ISD160 50 |
广西玉柴机器股份有限公司 广西玉柴机器股份有限公司 东风康明斯发动机有限公司 |
3767 3767 4500 |
103 118 118 |
other parameters |
Introduction: |
