HYS5042XWTH5 Model technical parameters | |||
Name: | HYS5042XWTH5 | Exterior size(mm): | 5995×2100×2950 |
Chassis: | HFC1041P93K4C2ZV | Container size(mm): | ×× |
Total weight :(kg) | 4495 | Approach angle/ Departure angle(° ) | 20/20 |
Payload:(kg) | Front suspension/rear suspension(mm): | 1085/1602 | |
Kerb Mass:(kg) | 4365(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | HFC1041P93K4C2ZV | Axle weight: | 1620/2875 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3308,2800,3360 | Fronttread(mm): | 1440 |
Max people in cab: | 2 | Rear tread(mm): | 1395,1425 |
Number of tires: | 6 | Number of spring axle: | 11/9+7,7/4+6 |
Tire Type: | 6.50-16 10PR,6.50R16 10PR,7.00R16 8PR,7.00-16 8PR | ||

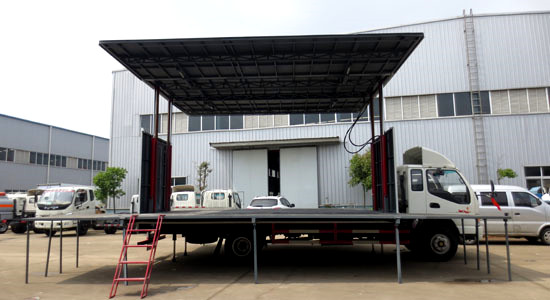

introduction: | 随底盘选装驾驶室。外观喷涂可发生变化。选装无导流罩结构,可选装车厢两侧LED屏结构,可设置多个窗户或不开窗;后门可选双门或不开门结构,后部可选装后尾部提升板,选装后部结构。车厢顶棚封闭,并采用衍架结构,可升降,车厢两侧板可展开,与顶棚形成整车舞台顶棚;活动舞台板可折叠于车厢内,通过展开装置展后与固定舞台台面形成整车舞台台面;底盘大梁部分设有支撑装置。侧防护为裙边结构,后防护采用冷弯型钢/Q235-A,焊接连接,后防护截面高度尺寸100mm, 截面宽度尺寸50mm,下边缘离地高度330mm。ABS控制器型号及生产企业:CM4XL-4S/4M,广州科密汽车电子控制技术股份有限公司。尾板收起状态与车后部距离180mm。该车作为流动演出的、可展开成为舞台。 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
HFC4DF1-2D2 D25TCIE1 HFC4DA1-2D WP3Q130E50 |
合肥江淮朝柴动力有限公司 昆明云内动力股份有限公司 安徽江淮汽车股份有限公司 潍柴动力扬州柴油机有限责任公司 |
2544 2499 2771 2970 |
86 105 88 96 |
