DLQ5160XWTD4 Model technical parameters | |||
Name: | DLQ5160XWTD4 | Exterior size(mm): | 9980,8980,8440×2500×3950,3750 |
Chassis: | HFC5161XXYP3K1A47V | Container size(mm): | ×× |
Total weight :(kg) | 16000 | Approach angle/ Departure angle(° ) | 18/17 |
Payload:(kg) | 5305 | Front suspension/rear suspension(mm): | 1400/2340,1400/2580,1400/2880 |
Kerb Mass:(kg) | 10500(Kg) | Max Speed(km/h): | 90 |
Chassis parameters | |||
Chassis: | HFC5161XXYP3K1A47V | Axle weight: | 6000/10000 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 4700,5000,5700,5300 | Fronttread(mm): | 1800,1820,1870 |
Max people in cab: | 3 | Rear tread(mm): | 1800 |
Number of tires: | 6 | Number of spring axle: | 3/4+3,3/9+7,9/9+7 |
Tire Type: | 9.00R20 16PR,10R22.5 16PR | ||
introduction: | 车厢顶棚封闭,并采用衍架结构,可升降,车厢两侧板可展开,与顶棚形成整车舞台顶棚;活动舞台板可折叠于车厢内,通过展开装置展后与固定舞台台面形成整车舞台台面;底盘大梁部分设有支撑装置。该车是进行舞台文艺表演的专用车辆。侧防护采用冷弯型钢/Q235,焊接连接,后防护采用冷弯型钢/Q235,焊接连接,后防护截面高度尺寸100mm, 截面宽度尺寸50mm,下边缘离地高度490mm。ABS控制器型号/生产企业:VIE ABS-II/浙江万安科技股份有限公司。可选装LED屏,可选装不同形式后门 |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
WP4.165E50 YC4EG185-50 WP4.1Q160E50 YC4S160-50 JND412D190-52 |
潍坊潍柴道依茨柴油机有限公司 广西玉柴机器股份有限公司 潍柴动力扬州柴油机有限责任公司 广西玉柴机器股份有限公司 安徽江淮纳威司达柴油发动机有限公司 |
4500 4730 4088 3767 4748 |
121 136 115 118 140 |
other parameters |
Introduction: |

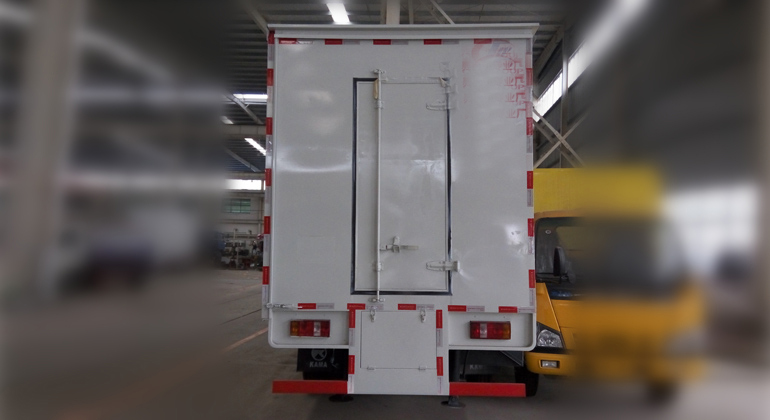

more Picture: |
