JDF5160TXSDFL5 Model technical parameters | |||
Name: | JDF5160TXSDFL5 | Exterior size(mm): | 8700,8400,8200×2500×2950 |
Chassis: | DFL1160BX1V | Container size(mm): | ×× |
Total weight :(kg) | 16000 | Approach angle/ Departure angle(° ) | 20/10 |
Payload:(kg) | 4200 | Front suspension/rear suspension(mm): | 1430/2270 |
Kerb Mass:(kg) | 11605(Kg) | Max Speed(km/h): | 98 |
Chassis parameters | |||
Chassis: | DFL1160BX1V | Axle weight: | 6000/10000 |
Number of axles: | 2 | Fuel Type: | Diesel fuel |
Wheelbase(mm): | 3800,4200,4500,4700,5000 | Fronttread(mm): | 1880,1900 |
Max people in cab: | 3 | Rear tread(mm): | 1800,1860,1820 |
Number of tires: | 6 | Number of spring axle: | 7/9+6,8/10+8 |
Tire Type: | 9.00-20,9.00R20,10.00-20,10.00R20,10R22.5,275/80R22.5,275/70R22.5 | ||
introduction: | 随底盘选装驾驶室;选装吸盘中置和双扫刷及无扫刷结构,选装后部结构,选装弧形垃圾箱.整车外形尺寸长和轴距对应关系(mm):8700/5000,8400/4700,8200/4500.侧面防护装置与工作装置相干涉,故豁免;后下部防护装置材料材质:Q235,连接方式:焊接加螺栓连接,断面尺寸(宽×高):65×260(mm),离地高度:410mm.ABS型号:3631010-C2000,4460046440;生产厂家:东科克诺尔商用车制动系统(十堰)有限公司,威伯科汽车控制系统()有限公. |
Engine parameters | |||
Type | Manufacturer | Displacement(ml) | Power(kw) |
ISD210 50 ISD190 50 ISD180 50 EQH180-52 EQH180-53 ISB180 50 ISD270 50 |
东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 东风商用车有限公司 东风商用车有限公司 东风康明斯发动机有限公司 东风康明斯发动机有限公司 |
6700 6700 4500 4752 4752 5900 6700 |
155 144 132 132 132 132 198 |
other parameters |
Introduction: |

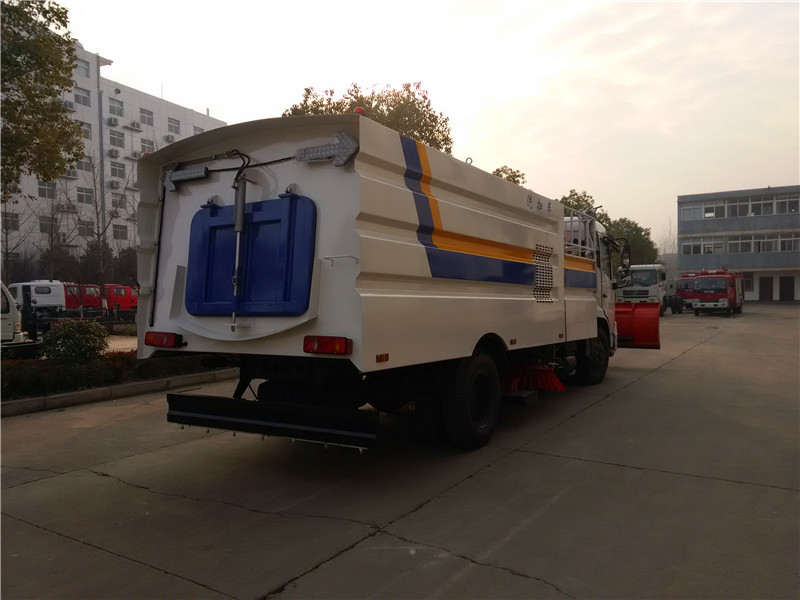

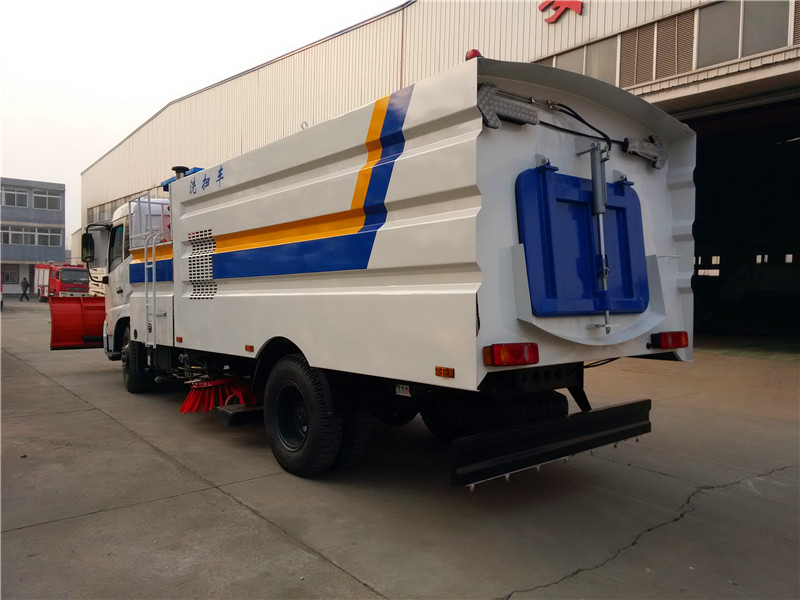

more Picture: |
